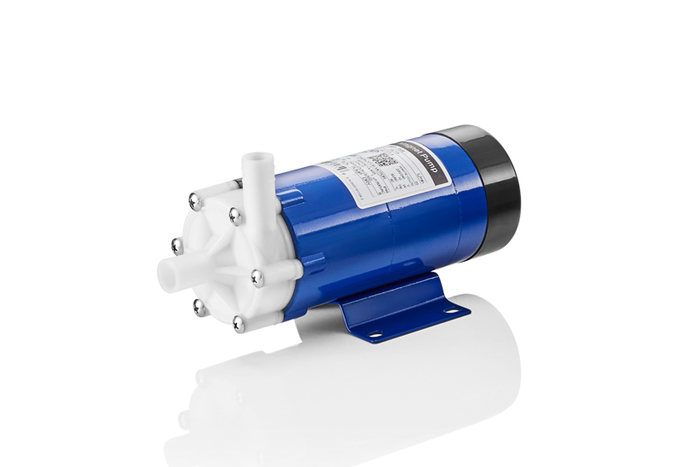

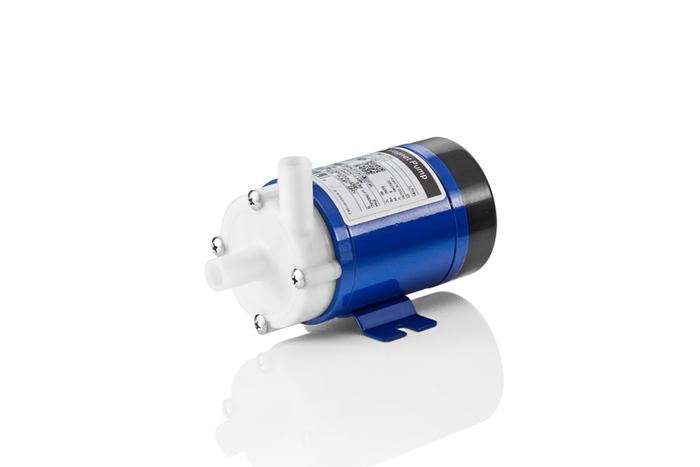

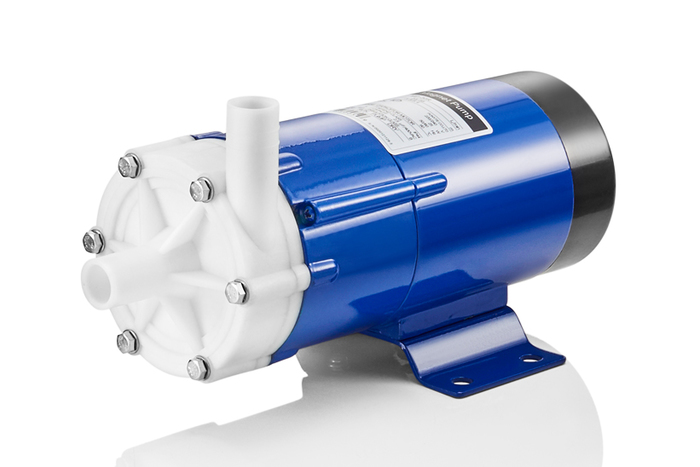

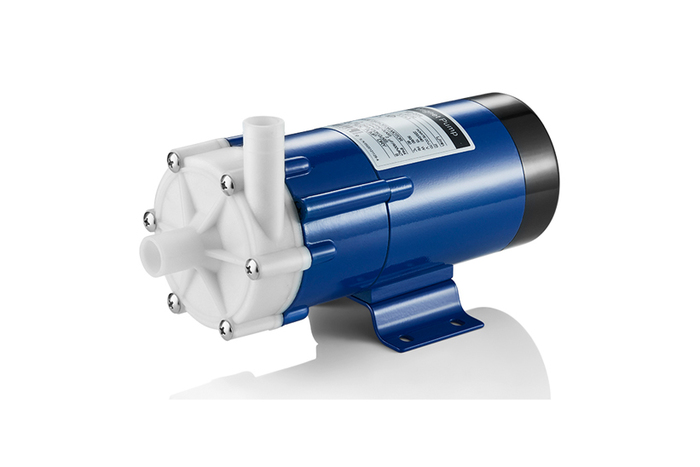

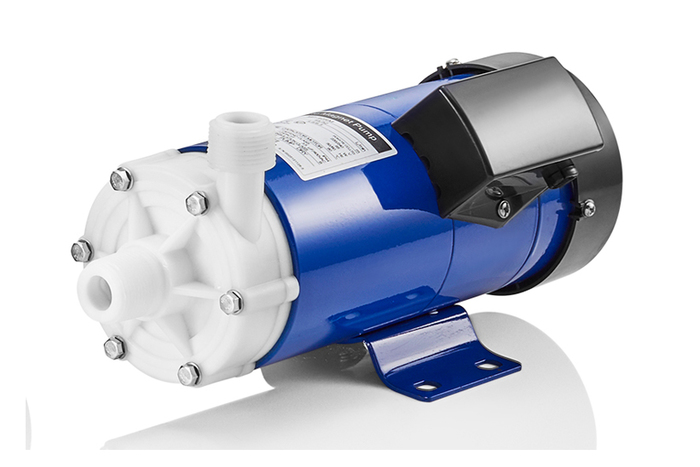

MP Series Magnetic Pump

MP Series Magnetic Pump

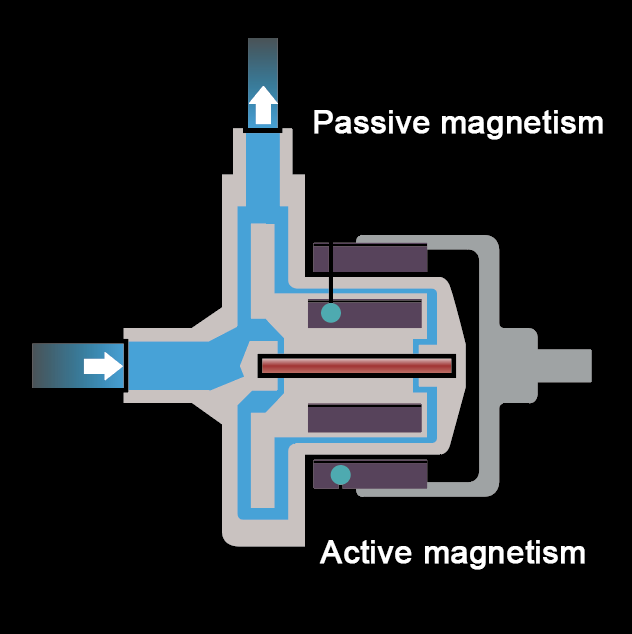

Operating Principle

MP series magnetic pump is driven by a pair of magnets on the impeller and motor shaft. Different from traditional centrifugal pumps in structure, there is no shaft seal. The pump cavity is separated by the back shell, and the motor drives the magnetic field to rotate. The coupling force of active magnetism and passive magnetism drives the impeller to rotate, so as to realize liquid transportation.



Characteristics

Absolutely leakproof
MP series is a non-leakage magnetic pump, with no seal wear and replacement problems, compact structure, easy installation, and ideal equipment for embedded applications.

Excellent corrosion resistance
MP series is made of GFRPP (glass fiber reinforced polypropylene), which can safely transport various chemical liquids.

Complete specifications
There are more than 50 models in the MP series. In addition to the standard, there are also high-lift special type, high flow special type and threaded connection type. The MP series product models are rich and diverse and have the greatest flexibility in selection.

Easy to maintain
MP series components are standardized, the number of parts is small, and the disassembly and maintenance are simple and convenient.


Applications

MP series magnetic pumps are suitable for various medical devices, analytical instruments, constant temperature baths, surface treatments and transportation of various chemical liquids.


Construction

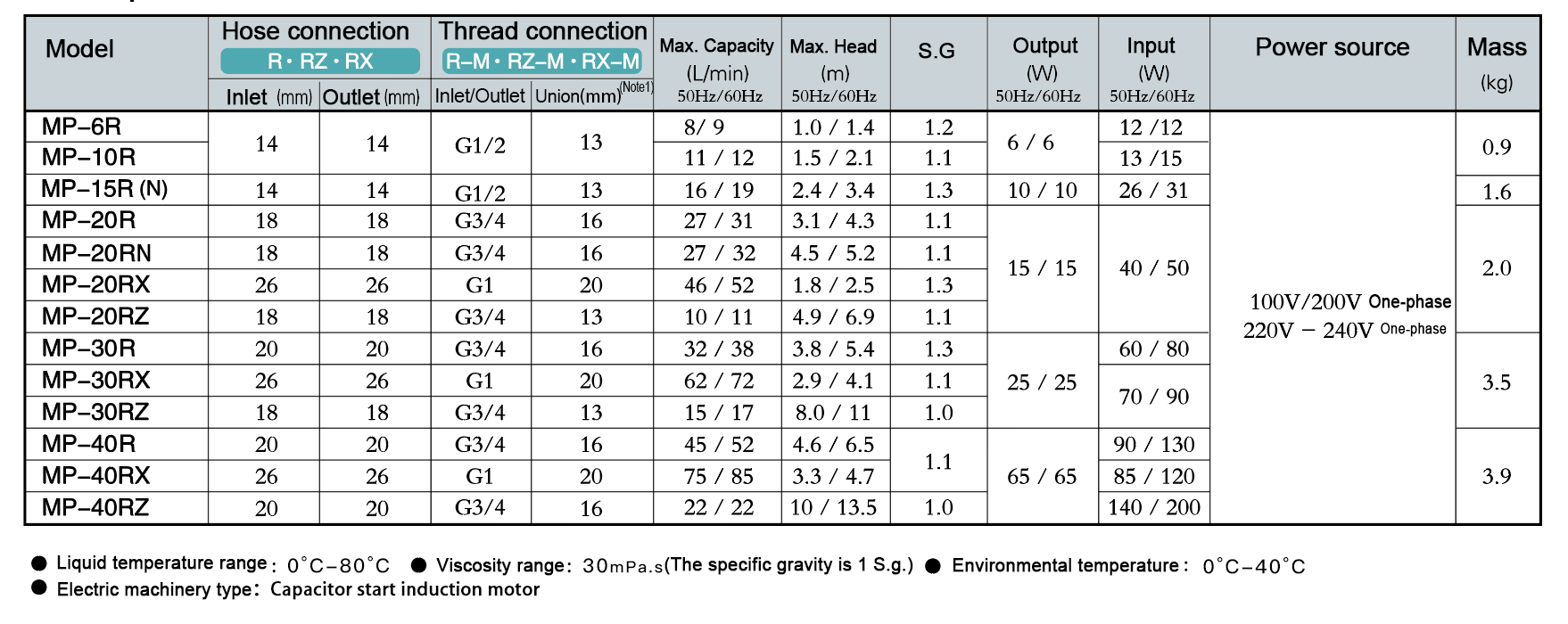

Specifications (50/60Hz)

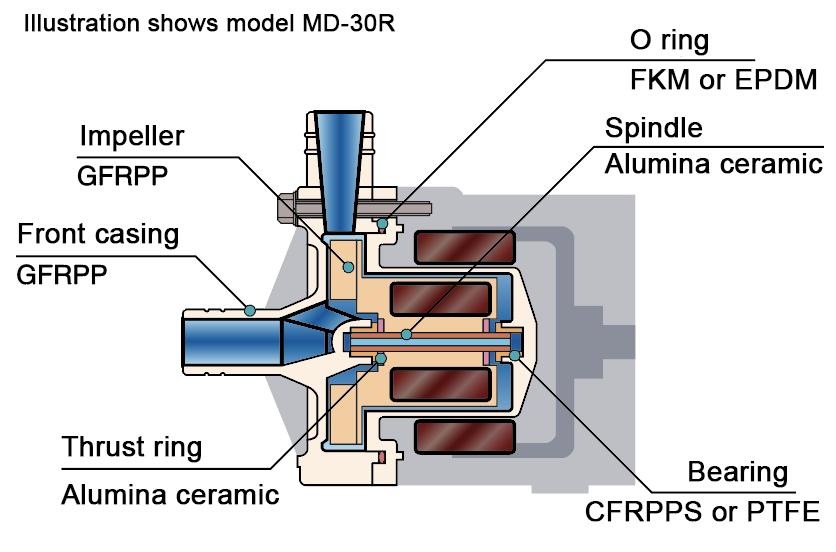

Construction and materials

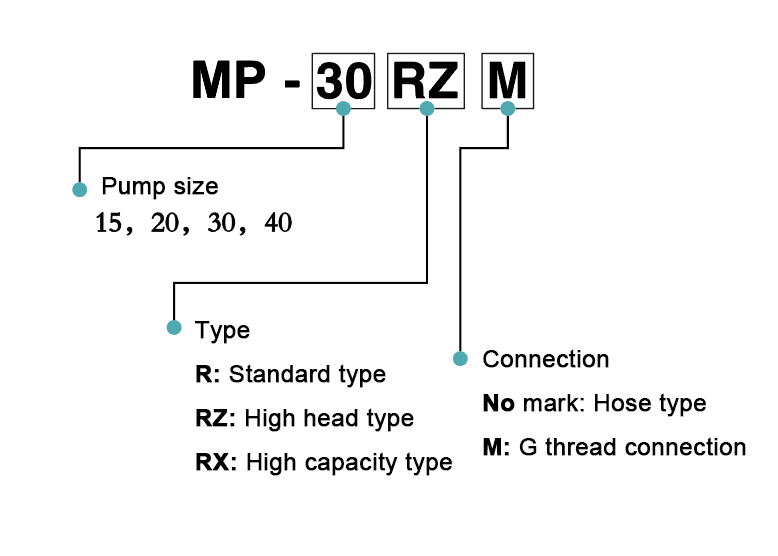

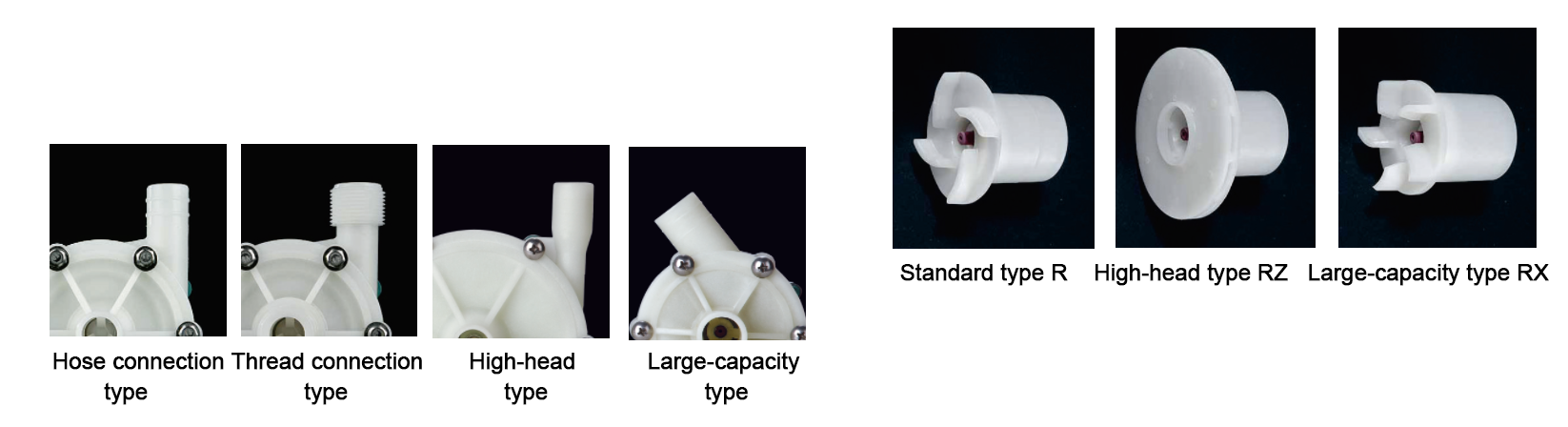

Pump identification

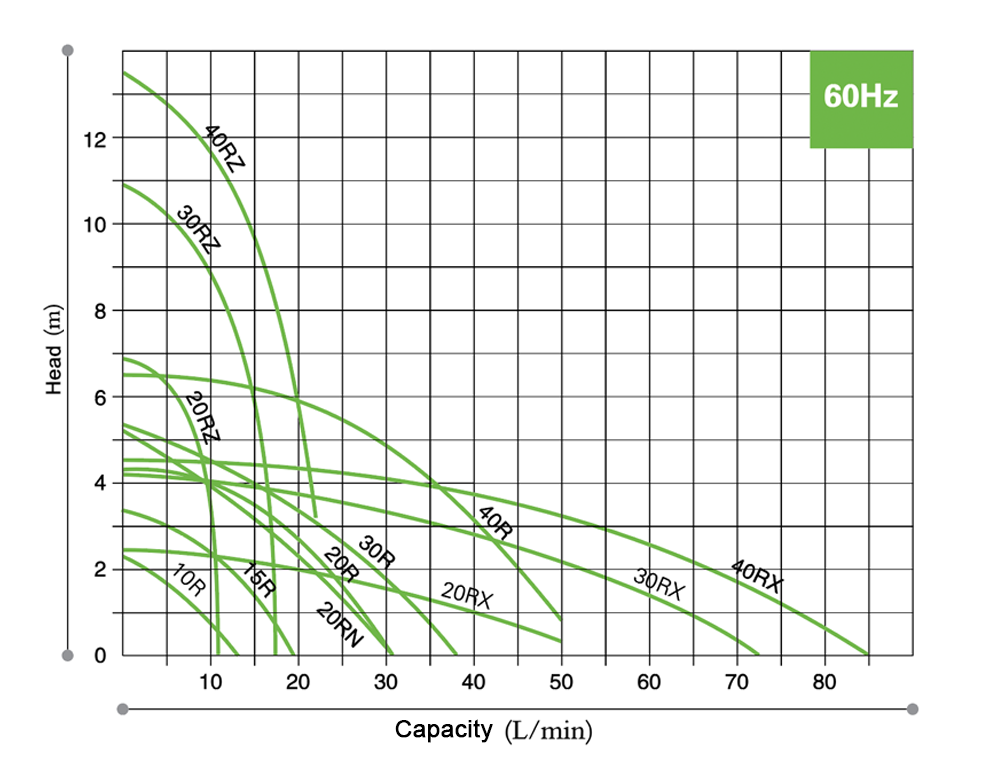

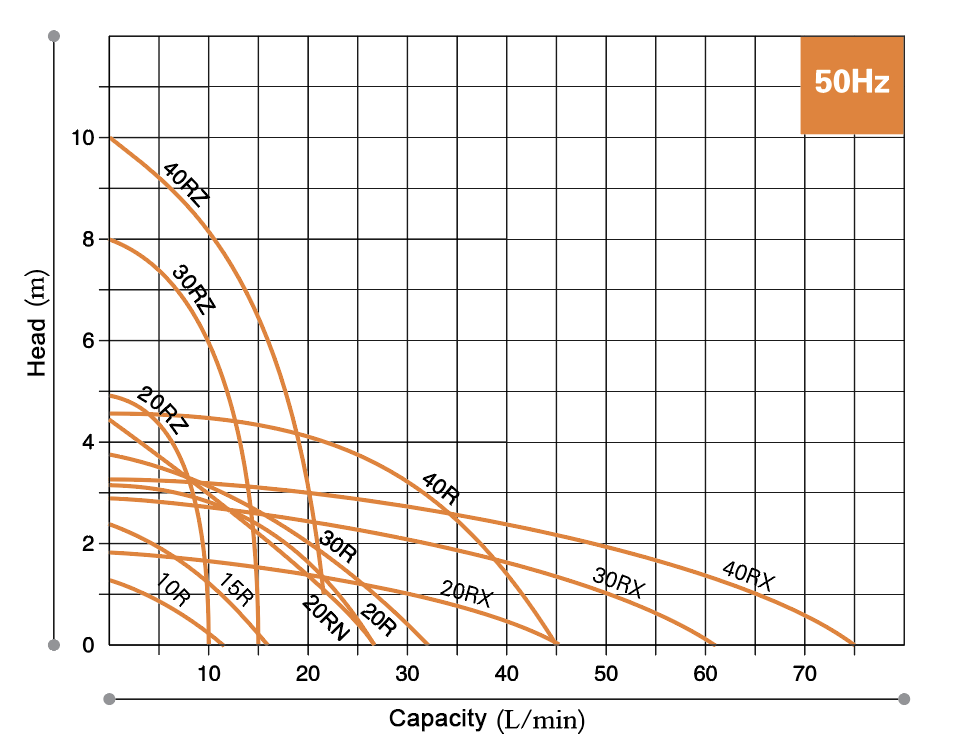

Performance curves

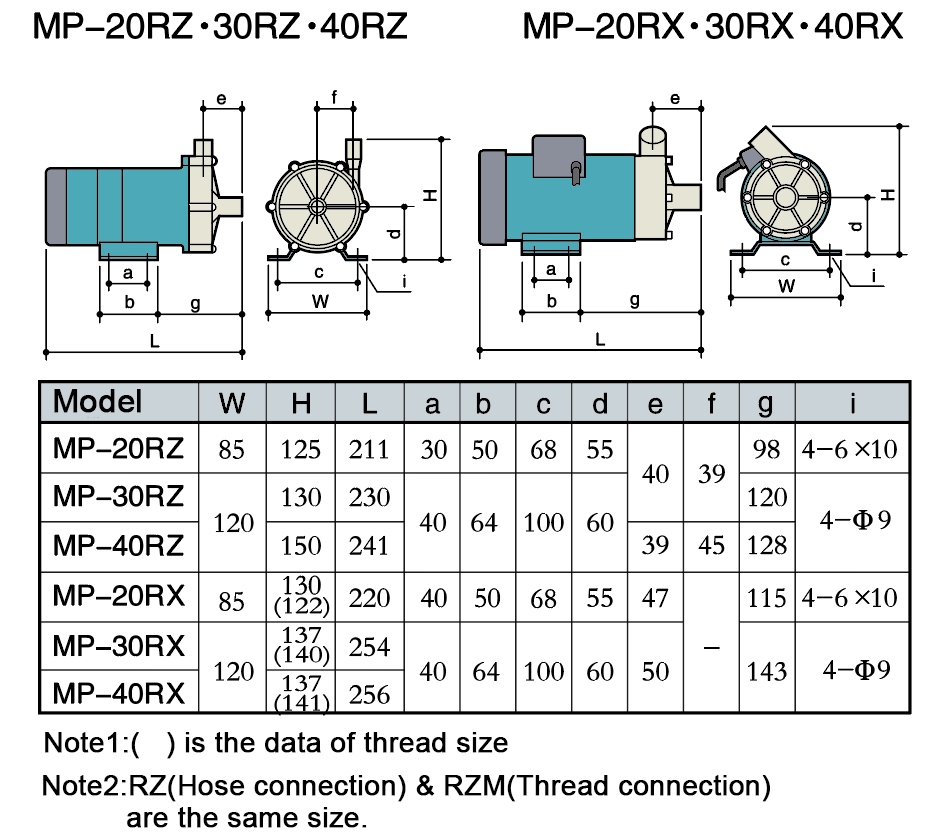

Dimensions (mm)
